HMC273AMS10GE - Analog Devices

Description: ANALOG DEVICES - HMC273AMS10GE - DIGITAL ATTENUATOR, 0.7-3.8GHZ, MSOP-10

Download HMC273AMS10GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

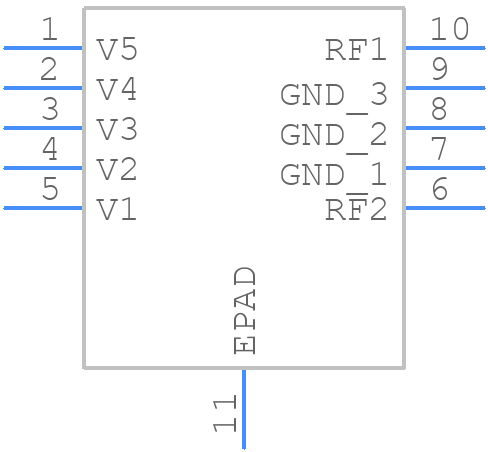

HMC273AMS10GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC273AMS10GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RH-10-3
click to zoom
3D Models
HMC273AMS10GE - Analog Devices - 3D model - Small Outline Packages - RH-10-3
click to zoom

HMC273AMS10GE Details

  • Manufacturer Part Number:

    HMC273AMS10GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RH-10-3

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.02 dBm

  • Insertion Loss-Max:

    3.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.38

HMC273AMS10GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply lines.
  • The HMC273AMS10GE requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA, which can be set using an external resistor.
  • The HMC273AMS10GE can operate up to 10 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 6 GHz for optimal performance.
  • The HMC273AMS10GE has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and matched to the device's input impedance. Use a level translator if necessary to match the voltage levels.
  • The typical current consumption of the HMC273AMS10GE is 10mA, but this can vary depending on the operating frequency, bias current, and other factors. Ensure the power supply can provide the required current to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC273AMS10GE Overview

Use the download button to access the HMC273AMS10GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC27, or try a keyword search, such as RF/Microwave Attenuators
