HMC274QS16ETR - Analog Devices

Description: 5Bits 1dBStep 31dB Digital Attenuator 2.7GHz 16-Pin QSOP

Download HMC274QS16ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

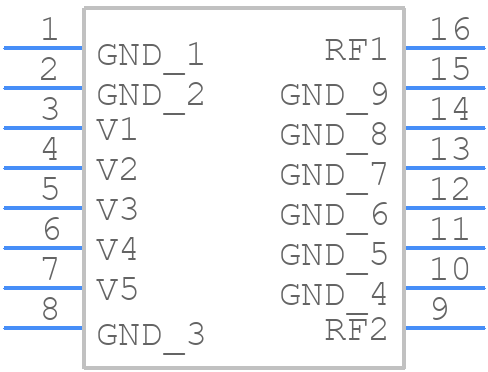

HMC274QS16ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC274QS16ETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC241AQS16E
click to zoom
3D Models
HMC274QS16ETR - Analog Devices - 3D model - Small Outline Packages - HMC241AQS16E
click to zoom

HMC274QS16ETR Details

  • Manufacturer Part Number:

    HMC274QS16ETR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QSOP-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    3.1 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.33

HMC274QS16ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC274QS16ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC274QS16ETR can operate up to 16 Gbps, but the maximum operating frequency depends on the specific application and signal quality. Consult the datasheet and application notes for more information.
  • Use a logic analyzer or oscilloscope to verify signal integrity and timing. Check the power supply and decoupling, and ensure the device is properly terminated. Consult the datasheet and application notes for troubleshooting guides.
  • The HMC274QS16ETR is not radiation-hardened and is not suitable for use in high-radiation environments. Consult Analog Devices Inc for radiation-hardened alternatives.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC274QS16ETR Overview

Use the download button to access the HMC274QS16ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC27, or try a keyword search, such as RF/Microwave Attenuators
