HMC284AMS8G - Analog Devices

Description: RF Switch ICs SPDT, Hi Isolation Switch , DC - 3.5 GHz

Download HMC284AMS8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

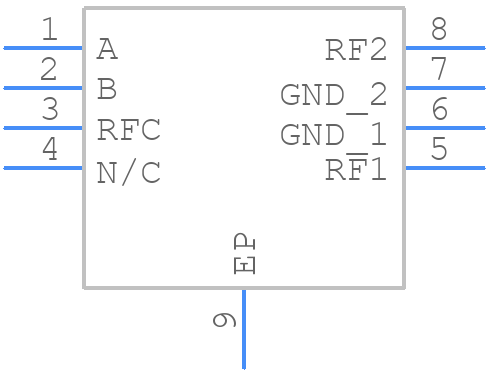

Symbol
HMC284AMS8G - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC284AMS8G - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC218BMS8GE
click to zoom
3D Models
HMC284AMS8G - Analog Devices - 3D model - Small Outline Packages - HMC218BMS8GE
click to zoom

HMC284AMS8G Details

  • Manufacturer Part Number:

    HMC284AMS8G

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    29 dBm

  • Additional Feature:

    CMOS COMPATIBLE, HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25.91 dBm

  • Insertion Loss-Max:

    1.1 dB

  • Isolation-Min:

    30 dB

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.005 µs

  • Operating Frequency-Max:

    3500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN LEAD

  • VSWR-Max:

    1.12
