HMC305SLP4ETR - Analog Devices

Description: ANALOG DEVICES - HMC305SLP4ETR - DIGITAL ATTENUATOR, 0.4-7GHZ, QFN-24

Download HMC305SLP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

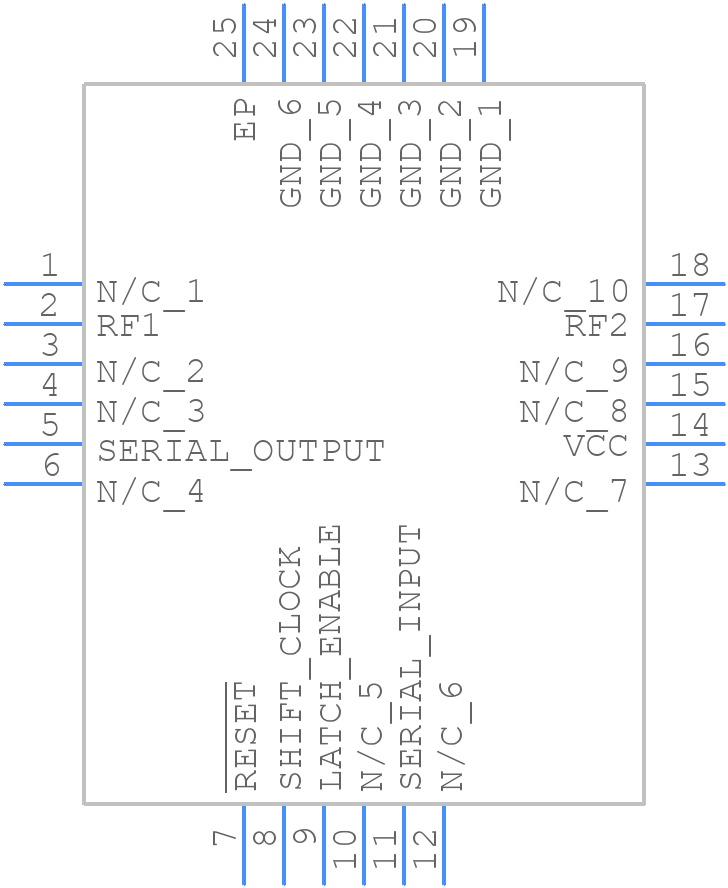

HMC305SLP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC305SLP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 lead 4x4mm QfN package
click to zoom
3D Models
HMC305SLP4ETR - Analog Devices - 3D model - Quad Flat No-Lead - 24 lead 4x4mm QfN package
click to zoom

HMC305SLP4ETR Details

  • Manufacturer Part Number:

    HMC305SLP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

HMC305SLP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The HMC305SLP4ETR requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA to 20mA.
  • The HMC305SLP4ETR can operate up to 6 GHz, but the optimal frequency range is between 2 GHz to 4 GHz for best performance.
  • The HMC305SLP4ETR has a parallel interface. Use a 5V tolerant microcontroller or FPGA with a parallel interface to communicate with the device. Ensure the interface signals are properly terminated and decoupled.
  • The typical current consumption of the HMC305SLP4ETR is 15mA to 20mA, depending on the operating frequency and bias current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC305SLP4ETR Overview

Use the download button to access the HMC305SLP4ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC30, or try a keyword search, such as RF/Microwave Attenuators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
