Part Image

HMC306AMS10E - Analog Devices

Description: 0.5 dB LSB GaAs MMIC 5-Bit Digital Attenuator, 0.7 - 3.8 GHz

Download HMC306AMS10E Model

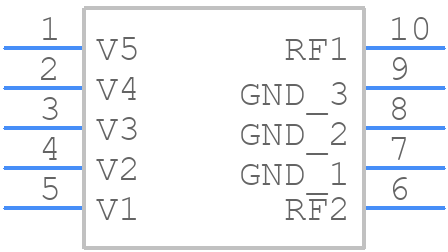

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC306AMS10E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MICRO SOIC
click to zoom
3D Models
HMC306AMS10E - Analog Devices  - 3D model - Small Outline Packages - MICRO SOIC
click to zoom

HMC306AMS10E Details

  • Manufacturer Part Number:

    HMC306AMS10E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    HRM-10-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Attenuation-Nom:

    15.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.7 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.58

HMC306AMS10E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The HMC306AMS10E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA.
  • The HMC306AMS10E can operate up to 10 GHz, but the optimal frequency range is between 2-6 GHz for best performance.
  • The HMC306AMS10E has a parallel interface. Use a 3.3V or 5V logic level translator to interface with a microcontroller or FPGA. Ensure the interface signals are properly terminated and matched to the device's input impedance.
  • The typical current consumption of the HMC306AMS10E is 10mA at 5V, but this can vary depending on the operating frequency and bias conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC306AMS10E Overview

Use the download button to access the HMC306AMS10E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC30, or try a keyword search, such as RF/Microwave Attenuators
