Part Image

HMC306MS10E - Analog Devices

Description: ANALOG DEVICES - HMC306MS10E - RF ATTENUATOR, 3.8GHZ, 5V, MSOP-10

Download HMC306MS10E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

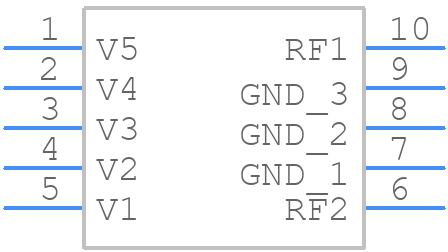

Symbol
HMC306MS10E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC306MS10E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSL1
click to zoom
3D Models
HMC306MS10E - Analog Devices - 3D model - Small Outline Packages - MSL1
click to zoom

HMC306MS10E Details

  • Manufacturer Part Number:

    HMC306MS10E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    HRM-10-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Attenuation-Nom:

    15.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    28.06 dBm

  • Insertion Loss-Max:

    2.7 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.58

HMC306MS10E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC306MS10E requires a single positive supply voltage (Vcc) between 3.3V and 5V. Ensure the voltage supply is well-regulated and decoupled with capacitors (e.g., 10uF and 100nF) to minimize noise and ripple.
  • The HMC306MS10E can handle input powers up to +20 dBm (100 mW). Exceeding this limit may cause damage to the device or affect its performance.
  • The HMC306MS10E has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and matched to the device's input impedance (50 ohms). Use a level translator if necessary to match the voltage levels.
  • The typical current consumption of the HMC306MS10E is around 350 mA at 3.3V supply voltage. However, this can vary depending on the operating frequency, input power, and temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC306MS10E Overview

Use the download button to access the HMC306MS10E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC30, or try a keyword search, such as RF/Microwave Attenuators
