- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC311LP3
- Part Number HMC311LP3
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HMC311LP3
- Released Date Oct 5, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC311LP3 Details
-
Manufacturer Part Number:
HMC311LP3
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
CP-16-50
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
HMC311LP3 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
Ensure the Vcc and Vee pins are decoupled with 100nF capacitors to ground, and the Iset pin is connected to a 10kΩ resistor to Vcc. Also, ensure the input and output pins are properly terminated.
-
The HMC311LP3 can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
-
Use a low-noise power supply, ensure proper decoupling, and minimize the length of the input and output traces. Also, use a high-quality PCB material with low dielectric loss.
-
Yes, the HMC311LP3 can be used in a push-pull configuration to improve the output power and reduce distortion. However, this requires careful design and layout to ensure proper balancing and impedance matching.
Trust Checks
Community Provided
System Verified
Community Approved
HMC311LP3 Overview

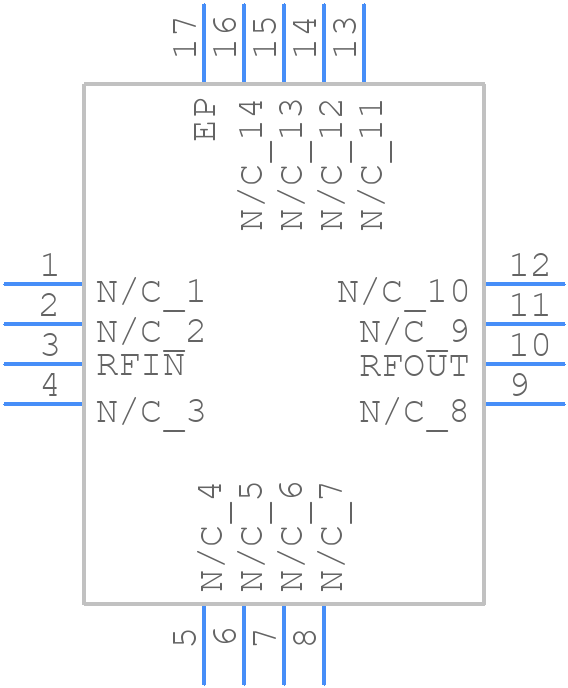

Use the download button to access the HMC311LP3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC31,
or try a keyword search, such as RF/Microwave Amplifiers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
