HMC311LP3E - Analog Devices

Description: P1dB Output Power: +15.5 dBm Output IP3: +32 dBm Gain: 14.5 dB 50 Ohm I/O’s 16 Lead 3x3mm SMT Package: 9mm2

Download HMC311LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

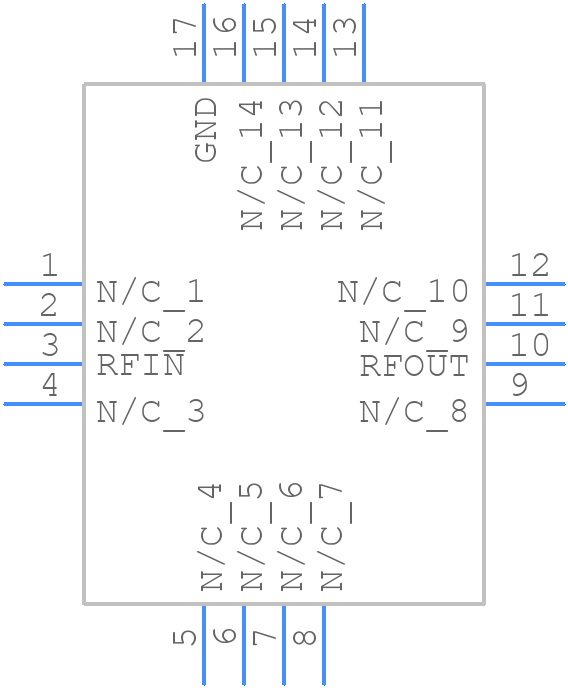

Symbol
HMC311LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC311LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-50
click to zoom
3D Models
HMC311LP3E - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-50
click to zoom

HMC311LP3E Details

  • Manufacturer Part Number:

    HMC311LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-50

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC311LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC311LP3E requires a single 3.3V or 5V power supply. Ensure the voltage regulator is stable and has low noise. Decouple the power pins with 10nF and 100nF capacitors.
  • The HMC311LP3E can handle input powers up to +20 dBm. Exceeding this may cause compression or damage to the device.
  • Use the device's internal bias circuitry to optimize the HMC311LP3E for a specific frequency band. Consult the datasheet for recommended bias settings for different frequency bands.
  • The typical current consumption of the HMC311LP3E is 45mA at 3.3V and 65mA at 5V. However, this may vary depending on the operating frequency and input power.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC311LP3E Overview

Use the download button to access the HMC311LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC31, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
