HMC321LP4 - Analog Devices

Description: RF Switch ICs SP8T Positive Control Swt , DC - 8 GHz

Download HMC321LP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

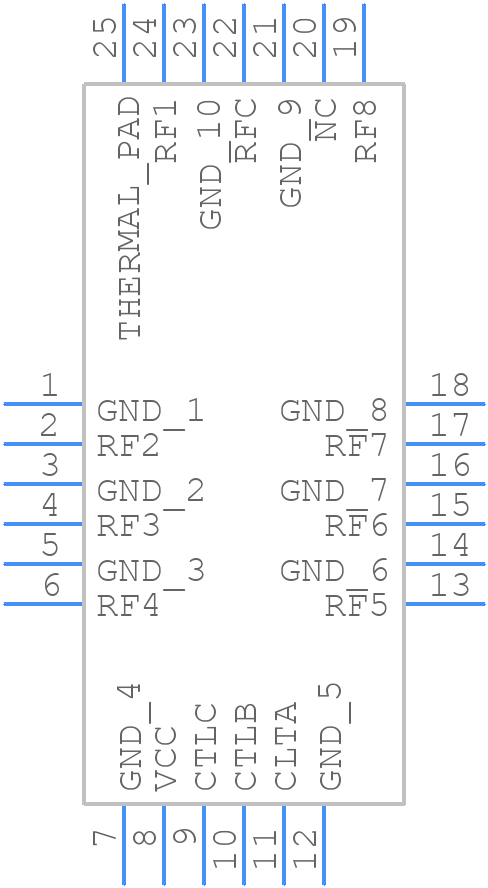

HMC321LP4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC321LP4 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 4x4 mm QFN leadless package
click to zoom
3D Models
HMC321LP4 - Analog Devices - 3D model - Quad Flat No-Lead - 4x4 mm QFN leadless package
click to zoom

HMC321LP4 Details

  • Manufacturer Part Number:

    HMC321LP4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 4 MM, LEADLESS, PLASTIC, SMT, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    23 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.02 dBm

  • Insertion Loss-Max:

    3.1 dB

  • Isolation-Min:

    20 dB

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP8T

  • Supply Current-Max:

    9 mA

  • Surface Mount:

    YES

  • Technology:

    MES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • VSWR-Max:

    1.67
