HMC322LP4E - Analog Devices

Description: IC RF SWITCH SP8T 8GHZ 24QFN

Download HMC322LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

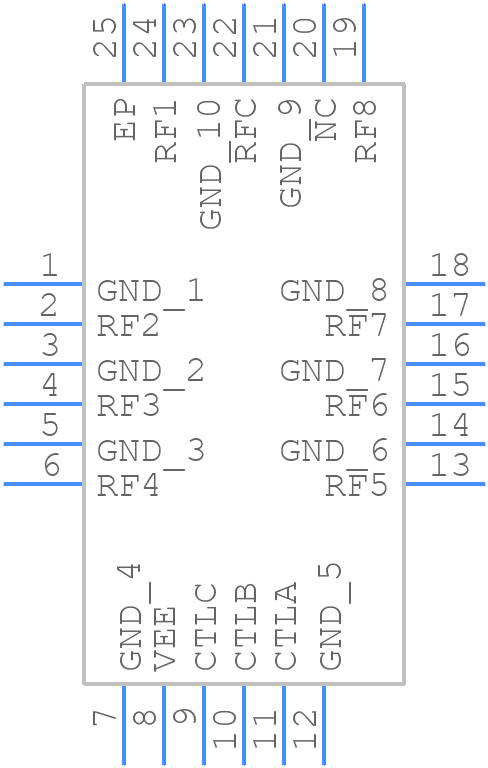

Symbol
HMC322LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC322LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24QFN HEIGHT 1
click to zoom
3D Models
HMC322LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24QFN HEIGHT 1
click to zoom

HMC322LP4E Details

  • Manufacturer Part Number:

    HMC322LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    23 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.02 dBm

  • Insertion Loss-Max:

    2.9 dB

  • Isolation-Min:

    20 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    -5 V

  • RF/Microwave Device Type:

    SP8T

  • Supply Current-Max:

    9 mA

  • Surface Mount:

    YES

  • Technology:

    MES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.67

HMC322LP4E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC322LP4E involves keeping the signal paths short, using a solid ground plane, and minimizing the number of vias. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to place the device close to the antenna.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and biasing circuitry as outlined in the datasheet. The device requires a single 5V supply and a bias voltage of 2.5V. Also, ensure that the bias voltage is well-regulated and noise-free.
  • The HMC322LP4E can handle up to 30 dBm of input power, but it's recommended to operate it at a maximum of 20 dBm to ensure optimal performance and reliability.
  • Common issues with the HMC322LP4E can be troubleshooted by checking the PCB layout, ensuring proper biasing, and verifying the input and output matching networks. Also, check for any signs of damage or overheating, and ensure that the device is operated within its recommended specifications.
  • Yes, the HMC322LP4E can be used in a push-pull configuration to achieve higher power output. However, this requires careful design and layout considerations to ensure proper impedance matching and to minimize unwanted coupling between the two devices.
