HMC326MS8GE - Analog Devices

Description: ANALOG DEVICES - HMC326MS8GE - RF Amplifier IC, 21 dB Gain / 5 dB Noise, 3 GHz to 4.5 GHz, 5 V, HMSOP-8

Download HMC326MS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

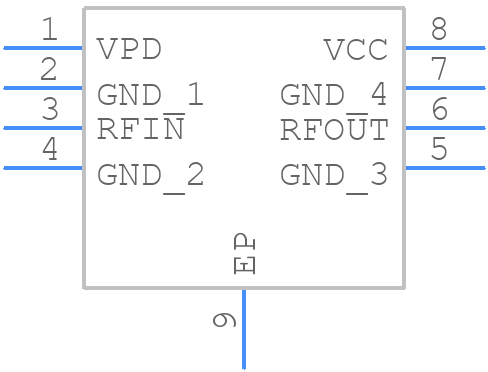

HMC326MS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC326MS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC218BMS8GE
click to zoom
3D Models
HMC326MS8GE - Analog Devices - 3D model - Small Outline Packages - HMC218BMS8GE
click to zoom

HMC326MS8GE Details

  • Manufacturer Part Number:

    HMC326MS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    4500 MHz

  • Operating Frequency-Min:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC326MS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC326MS8GE requires a single +5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC326MS8GE can operate up to 26.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC326MS8GE has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat.
  • The HMC326MS8GE uses a serial interface for control and configuration. A 3-wire serial interface (SCL, SDA, and RESET) is recommended for controlling the device.
