HMC326MS8GETR - Analog Devices

Description: RF Amp Single Driver Amp 4.5GHz 5.5V 8-Pin MSOP EP T/R

Download HMC326MS8GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

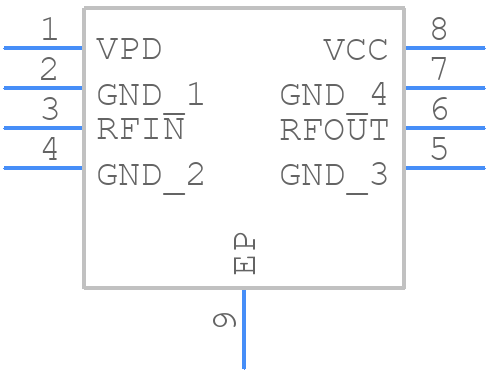

HMC326MS8GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC326MS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RH-8-1)-1
click to zoom
3D Models
HMC326MS8GETR - Analog Devices - 3D model - Small Outline Packages - (RH-8-1)-1
click to zoom

HMC326MS8GETR Details

  • Manufacturer Part Number:

    HMC326MS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, ULTRA SMALL, PLASTIC, SMT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    4500 MHz

  • Operating Frequency-Min:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    160 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC326MS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC326MS8GETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10nF and 100nF capacitors to minimize noise.
  • The HMC326MS8GETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC326MS8GETR has a parallel interface. Use a microcontroller or FPGA with a parallel interface to communicate with the device. Ensure the interface signals are properly terminated and matched to the device's input impedance.
  • The typical current consumption of the HMC326MS8GETR is 350mA, but this can vary depending on the operating frequency, temperature, and other factors.
