HMC327MS8GETR footprint, schematic symbol and 3D model by Analog Devices

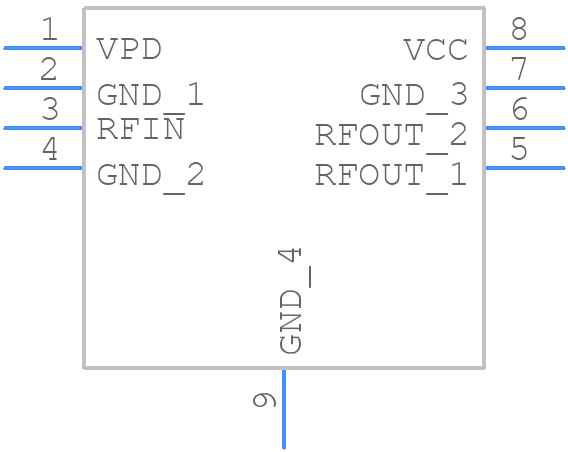

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC327MS8GETR
Part Number HMC327MS8GETR
Manufacturer Analog Devices
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MINI_SO_EP-1
Released Date Aug 26, 2026
Last Modified Date Aug 26, 2026 3:41 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC327MS8GETR Details

Manufacturer Part Number:
HMC327MS8GETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT, PLASTIC, SMT, MSOP-8
Pin Count:
8
Manufacturer Package Code:
HRH-8-1
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
17 dB
Input Power-Max (CW):
16 dBm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
8
Operating Frequency-Max:
4000 MHz
Operating Frequency-Min:
3000 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
TSSOP8,.19
Power Supplies:
5 V
RF/Microwave Device Type:
WIDE BAND MEDIUM POWER
Surface Mount:
YES
Technology:
BIPOLAR
VSWR-Max:
2.32

HMC327MS8GETR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
The HMC327MS8GETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10nF and 100nF capacitors to minimize noise.
The HMC327MS8GETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
The HMC327MS8GETR has a parallel interface. Use a microcontroller or FPGA with a parallel interface, and ensure the interface signals are properly terminated and matched to the HMC327MS8GETR's input impedance.
The typical current consumption of the HMC327MS8GETR is 350mA, but this can vary depending on the operating frequency, temperature, and other factors.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HMC327MS8GETR Overview

Use the download button to access the HMC327MS8GETR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC32, or try a keyword search, such as RF/Microwave Amplifiers
