HMC336MS8GE - Analog Devices

Description: Analog Devices Hittite HMC336MS8GE, RF Switch Circuit 6GHz Single SPDT 37dB Isolation MESFET Maximum of 5 V dc 8-Pin

Download HMC336MS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

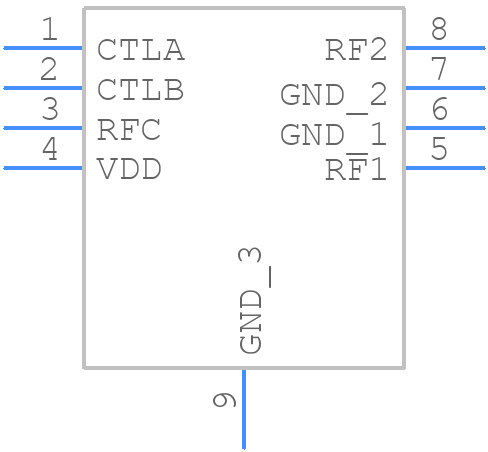

HMC336MS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC336MS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - h336
click to zoom
3D Models
HMC336MS8GE - Analog Devices - 3D model - Small Outline Packages - h336
click to zoom

HMC336MS8GE Details

  • Manufacturer Part Number:

    HMC336MS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    25 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27.99 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    37 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.02 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    MES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.67

HMC336MS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC336MS8GE requires a single +5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC336MS8GE can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • Use a low-noise power supply, minimize the length of the input traces, and use a high-quality input matching network to minimize reflections and optimize the noise figure.
  • Yes, but the HMC336MS8GE is optimized for 50 ohm systems. For non-50 ohm systems, additional impedance matching networks may be required to optimize performance.
