HMC336MS8GTR - Analog Devices

Description: RF Switch SPDT 0MHz to 6GHz 37dB 8-Pin SMT EP T/R

Download HMC336MS8GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

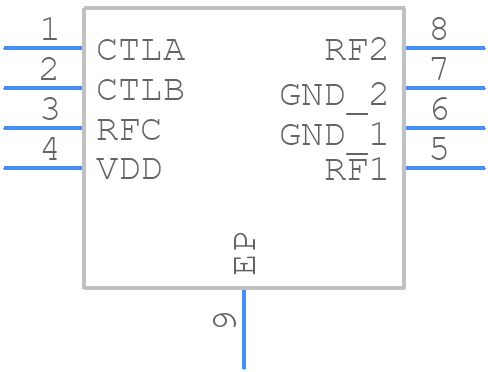

HMC336MS8GTR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC336MS8GTR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC336MS8G
click to zoom
3D Models
HMC336MS8GTR - Analog Devices - 3D model - Small Outline Packages - HMC336MS8G
click to zoom

HMC336MS8GTR Details

  • Manufacturer Part Number:

    HMC336MS8GTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    25 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27.99 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    37 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.02 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    0.1 mA

  • Surface Mount:

    YES

  • Technology:

    MES

  • VSWR-Max:

    1.67
