HMC344ALP3ETR - Analog Devices

Description: RF Switch ICs DC-8 GHz SP4T -V Non-Reflective Switch

Download HMC344ALP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

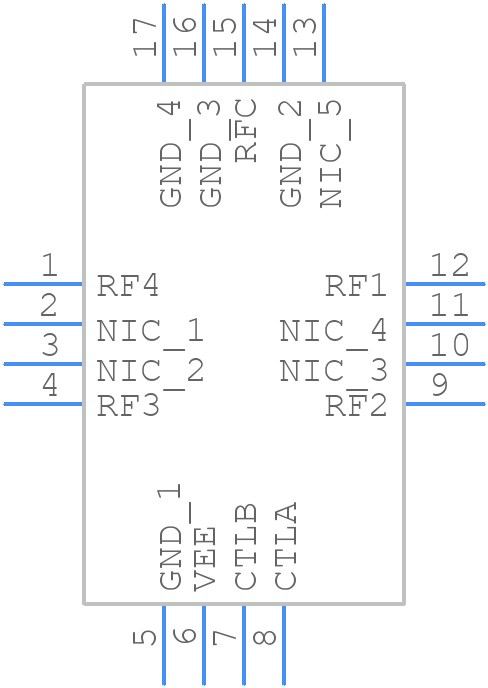

HMC344ALP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC344ALP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-50_2023
click to zoom
3D Models
HMC344ALP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-50_2023
click to zoom

HMC344ALP3ETR Details

  • Manufacturer Part Number:

    HMC344ALP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VEED-4, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-50

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    25 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    19.03 dBm

  • Insertion Loss-Max:

    2.5 dB

  • Isolation-Min:

    28 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.09 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    -3/-5 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    6 mA

  • Surface Mount:

    YES

  • Technology:

    MES

HMC344ALP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The HMC344ALP3ETR requires a single 3.3V or 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The device also requires a bias current of 10mA to 30mA.
  • The HMC344ALP3ETR can operate up to 6 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout.
  • The HMC344ALP3ETR has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and the clock signal is synchronized with the device's clock input.
  • The typical current consumption of the HMC344ALP3ETR is 20mA to 30mA, depending on the operating frequency and bias current.
