HMC345ALP3ETR - Analog Devices

Description: Broadband Performance: DC - 8 GHz High Isolation: 35 dB@ 6 GHz Low Insertion Loss: 2.0 dB@ 6 GHz Integrated Positive Supply 2:4 TTL Decoder 16 Lead 3x3mm QFN Package: 9 mm²

Download HMC345ALP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

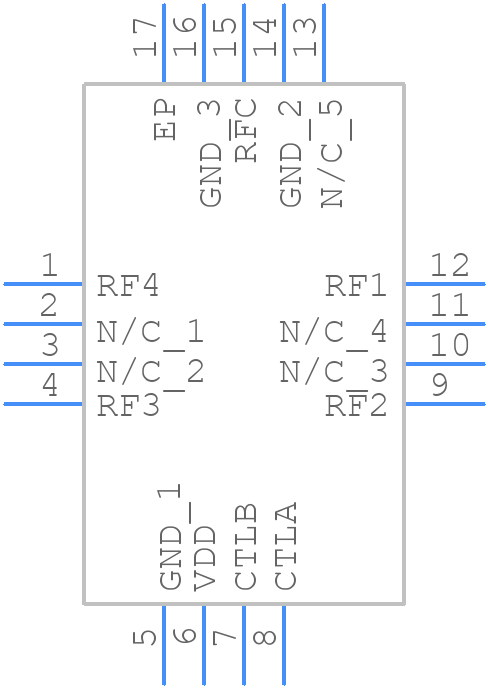

Symbol
HMC345ALP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC345ALP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Lead 3x3mm QFN...
click to zoom
3D Models
HMC345ALP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - 16 Lead 3x3mm QFN...
click to zoom

HMC345ALP3ETR Details

  • Manufacturer Part Number:

    HMC345ALP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    24 dBm

  • Insertion Loss-Max:

    2.9 dB

  • Isolation-Min:

    27 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.1 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    0/5 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    6 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.38

HMC345ALP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC345ALP3ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated. A 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling.
  • The HMC345ALP3ETR can operate up to 3.8 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC345ALP3ETR has a parallel interface. Use a microcontroller or FPGA with a parallel interface to communicate with the HMC345ALP3ETR. Ensure the interface signals are properly terminated and matched to the PCB impedance.
  • The typical current consumption of the HMC345ALP3ETR is 350mA at 3.3V. However, this can vary depending on the specific application and operating conditions.
