HMC345LP3 - Analog Devices

Description: Broadband Performance: DC - 8 GHz High Isolation: 35 dB@ 6 GHz Low Insertion Loss: 2.2 dB@ 6 GHz Integrated Positive Supply 2:4 TTL Decoder 3 x 3 mm SMT Package

Download HMC345LP3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

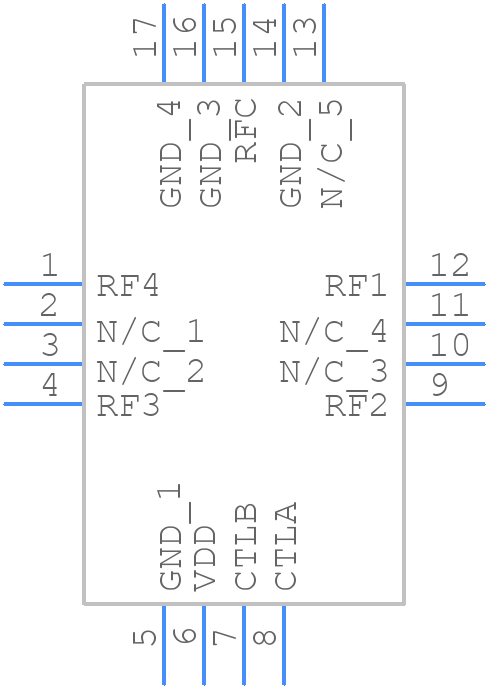

HMC345LP3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC345LP3 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16QFN.
click to zoom
3D Models
HMC345LP3 - Analog Devices - 3D model - Quad Flat No-Lead - 16QFN.
click to zoom

HMC345LP3 Details

  • Manufacturer Part Number:

    HMC345LP3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, LEADLESS, PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    21 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    23.98 dBm

  • Insertion Loss-Max:

    2.9 dB

  • Isolation-Min:

    27 dB

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.12 µs

  • Operating Frequency-Max:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    6 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • VSWR-Max:

    1.58

HMC345LP3 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC345LP3 requires a single 3.3V power supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC345LP3 can operate up to 3.8 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • Use a low-noise voltage regulator, decouple the power pins, and keep the signal traces away from the power plane. Also, use a high-quality PCB material with low dielectric loss.
  • The HMC345LP3 is rated for operation up to 85°C. However, the device's performance may degrade at higher temperatures. Ensure proper heat sinking and thermal management to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC345LP3 Overview

Use the download button to access the HMC345LP3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC34, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
