- Part Number HMC346ALP3E
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HCP-16-1
- Released Date Oct 13, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC346ALP3E Details
-
Manufacturer Part Number:
HMC346ALP3E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
16
-
Manufacturer Package Code:
HCP-16-1
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC346ALP3E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
-
The HMC346ALP3E requires a single +5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
-
The HMC346ALP3E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
-
Minimize the noise figure by using a low-noise power supply, keeping the device away from noise sources, and using a high-quality PCB layout with minimal signal reflections.
-
The typical current consumption of the HMC346ALP3E is 120mA, but this can vary depending on the specific application and operating conditions.
Trust Checks
Community Provided
System Verified
Community Approved
HMC346ALP3E Overview

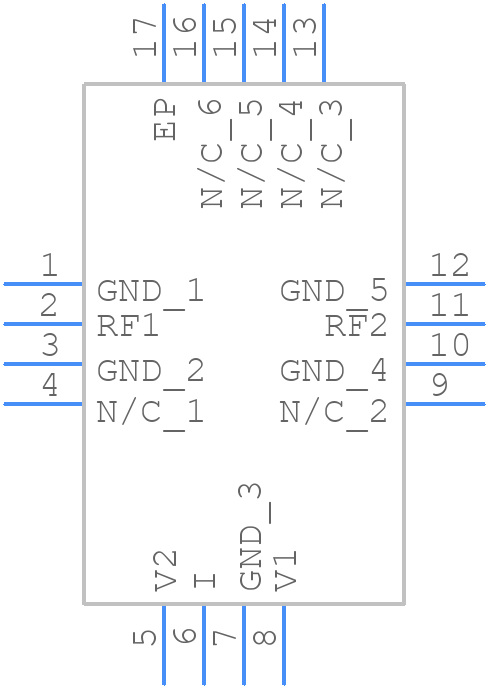

Use the download button to access the HMC346ALP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC34,
or try a keyword search, such as RF/Microwave Attenuators
