- Part Number HMC346AMS8GE
- Manufacturer Analog Devices
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - HMC346AMS8GE
- Released Date May 31, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC346AMS8GE Details
-
Manufacturer Part Number:
HMC346AMS8GE
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
MO-187-AA-T, 8 PIN
-
Pin Count:
8
-
Manufacturer Package Code:
RH-8-1
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC346AMS8GE Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
-
The HMC346AMS8GE requires a single +5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
-
The HMC346AMS8GE can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
-
The HMC346AMS8GE has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and the clock signal is synchronized with the data signals.
-
The typical current consumption of the HMC346AMS8GE is around 350mA, but this can vary depending on the operating frequency and the specific application.
Trust Checks
Community Provided
System Verified
Community Approved
HMC346AMS8GE Overview

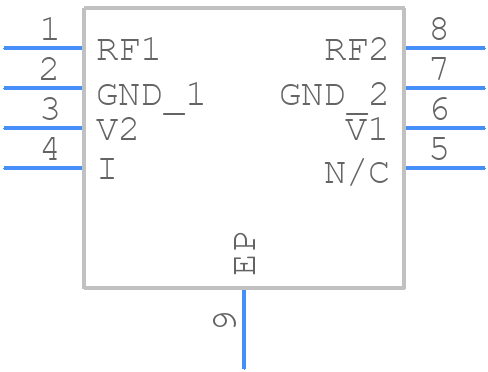

Use the download button to access the HMC346AMS8GE schematic symbol, PCB footprint, and 3D model.
