HMC348LP3E - Analog Devices

Description: Analog Devices Hittite HMC348LP3E, RF Switch Circuit 2.5GHz Single SPDT 45dB Isolation MESFET 16-Pin QFN

Download HMC348LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

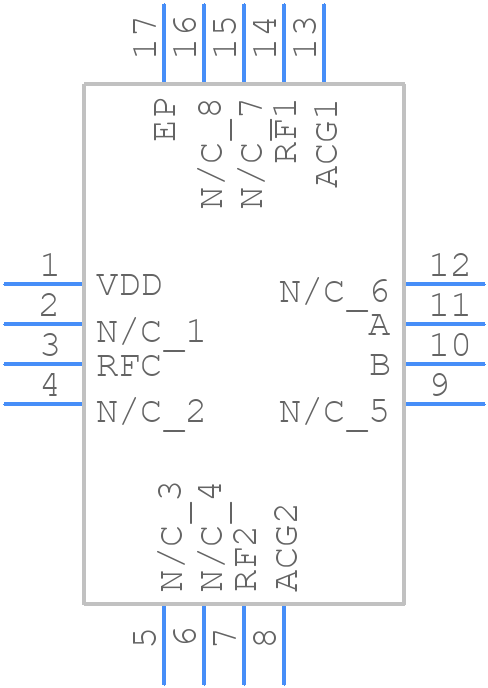

HMC348LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC348LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-QFN
click to zoom
3D Models
HMC348LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 16-QFN
click to zoom

HMC348LP3E Details

  • Manufacturer Part Number:

    HMC348LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    45 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.6 µs

  • Operating Frequency-Max:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    2.2 mA

  • Surface Mount:

    YES

  • Technology:

    MES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.22

HMC348LP3E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC348LP3E involves keeping the signal paths short, using a solid ground plane, and minimizing the number of vias. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to place the device close to the antenna.
  • To optimize the HMC348LP3E for low power consumption, use the lowest possible supply voltage, reduce the operating frequency, and use the device's power-down mode when not in use. Additionally, consider using a low-power mode for the device's internal voltage regulator.
  • The HMC348LP3E can operate over a temperature range of -40°C to +85°C, but it's recommended to operate it within a range of -20°C to +70°C for optimal performance and reliability.
  • To troubleshoot common issues with the HMC348LP3E, check the device's power supply, ensure proper PCB layout and grounding, and verify that the device is properly configured. Use a spectrum analyzer to measure the device's output signal and check for any signs of distortion or interference.
  • Yes, the HMC348LP3E can be used in a non-50 ohm system, but it may require additional impedance matching components to ensure optimal performance. Consult the device's datasheet and application notes for guidance on impedance matching.
