HMC349ALP4CE - Analog Devices

Description: RF Switch SPDT 0MHz to 4GHz 55dB 16-Pin QFN EP T/R

Download HMC349ALP4CE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

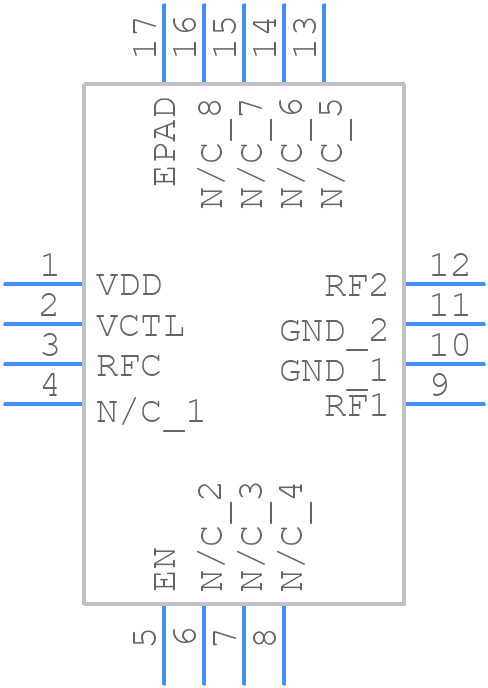

Symbol
HMC349ALP4CE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC349ALP4CE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16-ren1
click to zoom
3D Models
HMC349ALP4CE - Analog Devices - 3D model - Quad Flat No-Lead - QFN16-ren1
click to zoom

HMC349ALP4CE Details

  • Manufacturer Part Number:

    HMC349ALP4CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-40

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.5 dBm

  • Insertion Loss-Max:

    1.7 dB

  • Isolation-Min:

    50 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    3.5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed
