HMC349ALP4CETR - Analog Devices

Description: RF Switch ICs DC-4 GHZ Hi Isolation Switch

Download HMC349ALP4CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

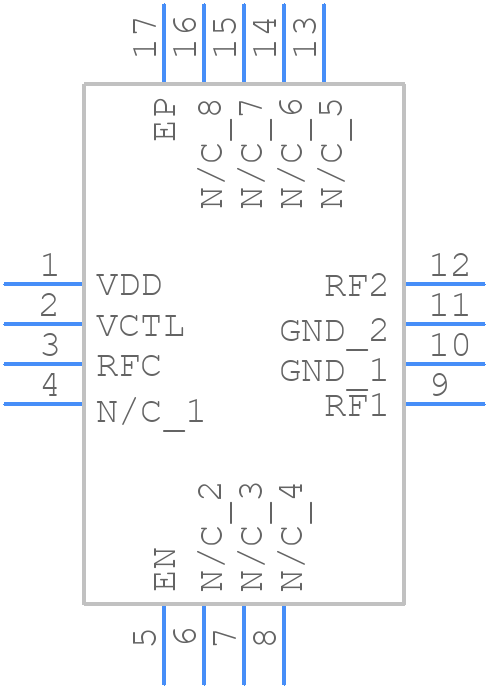

HMC349ALP4CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC349ALP4CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 qfen+
click to zoom
3D Models
HMC349ALP4CETR - Analog Devices - 3D model - Quad Flat No-Lead - 16 qfen+
click to zoom

HMC349ALP4CETR Details

  • Manufacturer Part Number:

    HMC349ALP4CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VGGC-4, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.5 dBm

  • Insertion Loss-Max:

    1.7 dB

  • Isolation-Min:

    50 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    3.5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC349ALP4CETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode choke or a ferrite bead to filter the power supply lines.
  • The HMC349ALP4CETR requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power supply, and the Vee pin should be connected to a quiet ground.
  • The HMC349ALP4CETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 4 GHz for optimal performance.
  • To minimize the noise figure, ensure the input signal is properly matched to the device's input impedance (50 ohms). Use a low-noise amplifier or a low-noise voltage regulator to power the device. Keep the device away from noise sources and use shielding to minimize electromagnetic interference.
  • The maximum input power that the HMC349ALP4CETR can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
