HMC349AMS8GTR - Analog Devices

Description: High Isolation, Nonreflective, GaAs, SPDT Switch,100 MHz to 4 GHz

Download HMC349AMS8GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

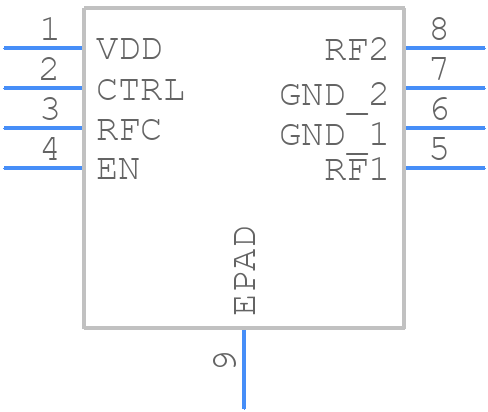

Symbol
HMC349AMS8GTR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC349AMS8GTR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H438
click to zoom
3D Models
HMC349AMS8GTR - Analog Devices - 3D model - Small Outline Packages - H438
click to zoom

HMC349AMS8GTR Details

  • Manufacturer Part Number:

    HMC349AMS8GTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MO-187AA-T, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-10-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.5 dBm

  • Insertion Loss-Max:

    2.1 dB

  • Isolation-Min:

    42 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.16 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    SPDT

  • Supply Current-Max:

    3.5 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

HMC349AMS8GTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC349AMS8GTR can be found in the 'PCB Layout and Thermal Management' section of the ADI's application note AN-1369. It provides guidelines for optimal performance, including component placement, thermal vias, and heat sink design.
  • To optimize the HMC349AMS8GTR for low noise and high linearity, follow the guidelines in the 'Noise and Linearity Optimization' section of the datasheet. This includes using a low noise power supply, minimizing parasitic inductance, and optimizing the input and output matching networks.
  • The recommended calibration procedure for the HMC349AMS8GTR can be found in the 'Calibration' section of the datasheet. It involves adjusting the device's internal registers to optimize its performance, including gain, phase, and offset calibration.
  • The HMC349AMS8GTR can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. The device's register map and interface protocol are described in the 'Interface' section of the datasheet.
  • The HMC349AMS8GTR meets various reliability and environmental testing standards, including MIL-STD-883, MIL-STD-202, and IEC 60068. The specific standards and test conditions are listed in the 'Reliability' section of the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC349AMS8GTR Overview

Use the download button to access the HMC349AMS8GTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC34, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
