A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
Ensure the Vcc and Vee pins are properly decoupled with 0.1uF and 10uF capacitors, respectively. Also, ensure the bias voltage (Vbias) is set to the recommended 5V ± 0.5V.
The maximum power dissipation of the HMC3587LP3BE is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
Use a low-noise power supply, keep the signal traces short and shielded, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
The recommended operating temperature range for the HMC3587LP3BE is -40°C to +85°C. Ensure proper thermal management to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HMC3587LP3BE Overview

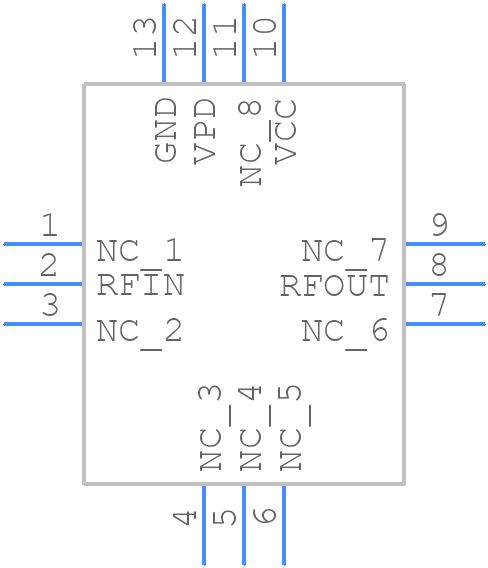

Use the download button to access the HMC3587LP3BE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC35,
or try a keyword search, such as RF/Microwave Amplifiers
