HMC3587LP3BETR - Analog Devices

Description: High Output IP3: +25 dBm Single Positive Supply: +5V Low Noise Figure: 3.5 dB [1] 12 Lead 3x3 mm SMT Package: 9mm²

Download HMC3587LP3BETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

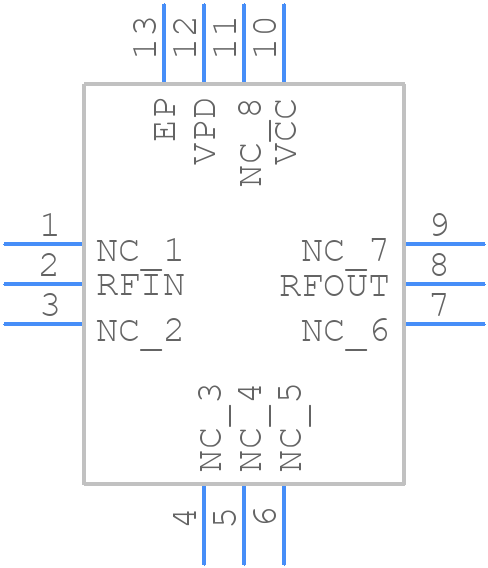

HMC3587LP3BETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC3587LP3BETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 0.85 mm Package Height (CP-12-10).
click to zoom
3D Models
HMC3587LP3BETR - Analog Devices - 3D model - Quad Flat No-Lead - 12-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 0.85 mm Package Height (CP-12-10).
click to zoom

HMC3587LP3BETR Details

  • Manufacturer Part Number:

    HMC3587LP3BETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CP-12-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15 dB

  • Input Power-Max (CW):

    12 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    60 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC3587LP3BETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling. Use a common mode choke or a ferrite bead to filter the power supply lines.
  • Ensure the VCC and VEE pins are properly decoupled with 100nF and 1uF capacitors, respectively. The recommended bias voltage is 5V, but the device can operate from 3.3V to 5.5V. Use a voltage regulator or a low-dropout regulator to ensure a stable supply voltage.
  • The maximum power dissipation of the HMC3587LP3BETR is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating, especially in high-frequency applications.
  • Use a shielded enclosure, keep the device away from other noise-sensitive components, and use EMI-absorbing materials. Ensure proper grounding and decoupling of the device. Use a common mode choke or a ferrite bead to filter the power supply lines.
  • The recommended operating temperature range for the HMC3587LP3BETR is -40°C to 85°C. Ensure proper thermal management and heat sinking to prevent overheating, especially in high-frequency applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC3587LP3BETR Overview

Use the download button to access the HMC3587LP3BETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC35, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
