HMC358MS8GE - Analog Devices

Description: ANALOG DEVICES - HMC358MS8GE - VCO W/BUFFER AMP, 5.6-6.8GHZ, MSOP-8

Download HMC358MS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

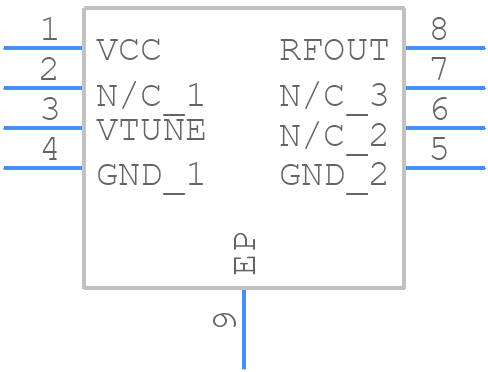

HMC358MS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC358MS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 412B
click to zoom
3D Models
HMC358MS8GE - Analog Devices - 3D model - Small Outline Packages - 412B
click to zoom

HMC358MS8GE Details

  • Manufacturer Part Number:

    HMC358MS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, MSOP8G, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    10 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    150 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    6800 MHz

  • Operating Frequency-Min:

    5800 MHz

  • Operating Frequency-Nom:

    6800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    8 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    3.1mm x 3.1mm x 1.1mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.25 V

  • Supply Voltage-Min:

    2.75 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC358MS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC358MS8GE requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC358MS8GE can operate up to 2.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • To minimize the noise figure, ensure the input signal is properly matched to the device, use a low-noise power supply, and keep the device away from noise sources. Additionally, use a high-quality PCB material and ensure good thermal management.
  • The recommended operating temperature range for the HMC358MS8GE is -40°C to +85°C. However, the device can operate up to +125°C with reduced performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC358MS8GE Overview

Use the download button to access the HMC358MS8GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC35, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
