HMC362S8GTR - Analog Devices

Description: SMT GaAs HBT MMIC Divide-by-4, DC - 12 GHz

Download HMC362S8GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

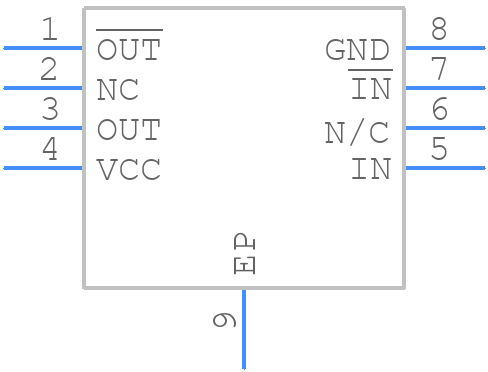

HMC362S8GTR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC362S8GTR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RD-8-3
click to zoom
3D Models
HMC362S8GTR - Analog Devices - 3D model - Small Outline Packages - RD-8-3
click to zoom

HMC362S8GTR Details

  • Manufacturer Part Number:

    HMC362S8GTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, SMT-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RD-8-3

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Family:

    362

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Logic IC Type:

    PRESCALER

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    235

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    3.9 mm

  • fmax-Min:

    12000 MHz

HMC362S8GTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the RF input, and the output should be routed away from the input to minimize feedback. A microstrip or coplanar waveguide layout is recommended for the RF traces.
  • The biasing circuit should be designed to provide a stable voltage supply to the device. A voltage regulator with a low dropout voltage and low noise is recommended. The bias voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The maximum power handling capability of the HMC362S8GTR is 30 dBm. However, the device can handle higher power levels for short durations. It's recommended to use an attenuator or a limiter to protect the device from excessive power input.
  • Common issues with the HMC362S8GTR include poor gain, high noise figure, and oscillation. To troubleshoot these issues, check the PCB layout, biasing circuit, and input/output matching. Use a spectrum analyzer to measure the output spectrum and identify any spurious signals.
  • The recommended operating temperature range for the HMC362S8GTR is -40°C to 85°C. However, the device can operate at temperatures up to 105°C for short durations. It's recommended to use a heat sink or a thermal management system to maintain a stable temperature.
