HMC3653LP3BETR - Analog Devices

Description: HBT Gain Block MMIC Amplifier, 7 - 15 GHz

Download HMC3653LP3BETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

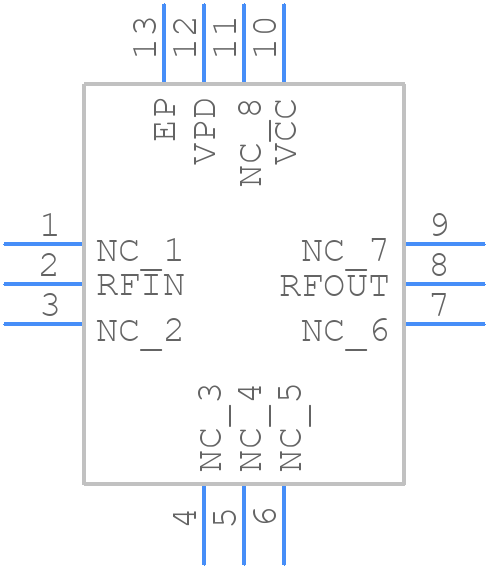

HMC3653LP3BETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC3653LP3BETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-12-10
click to zoom
3D Models
HMC3653LP3BETR - Analog Devices - 3D model - Quad Flat No-Lead - CP-12-10
click to zoom

HMC3653LP3BETR Details

  • Manufacturer Part Number:

    HMC3653LP3BETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    CP-12-10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    15000 MHz

  • Operating Frequency-Min:

    7000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    55 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

HMC3653LP3BETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are properly decoupled with 0.1uF and 10uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
  • The HMC3653LP3BETR can handle up to 30 dBm of input power. Exceeding this limit may cause damage to the device.
  • Use a spectrum analyzer to check for spurious signals, and verify the input signal is within the recommended frequency range. Also, check the PCB layout for any noise coupling or signal integrity issues.
  • The HMC3653LP3BETR is rated for operation up to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC3653LP3BETR Overview

Use the download button to access the HMC3653LP3BETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC36, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
