HMC365G8 - Analog Devices

Description: Prescaler InGaP HBT Divide-by-4 SMT, DC - 13 GHz

Download HMC365G8 Model

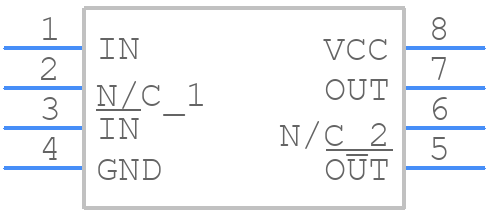

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC365G8 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead Hermetic SMT Package
click to zoom
3D Models
HMC365G8 - Analog Devices  - 3D model - Small Outline Packages - 8 Lead Hermetic SMT Package
click to zoom

HMC365G8 Details

  • Manufacturer Part Number:

    HMC365G8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMT-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    FR-8-2

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Family:

    365

  • JESD-30 Code:

    R-GDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.57 mm

  • Logic IC Type:

    PRESCALER

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.77 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4.57 mm

  • fmax-Min:

    13000 MHz

HMC365G8 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Use a voltage-controlled current source to bias the device. Adjust the bias voltage to achieve the desired output power and linearity. Typically, a bias voltage of 3.5-4.5V is recommended.
  • The maximum input power is +10 dBm. Exceeding this limit may cause compression and distortion.
  • Use a 50-ohm microstrip line or a coaxial cable to match the input and output impedances. Ensure the PCB layout is symmetrical to maintain impedance matching.
  • The recommended operating temperature range is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
