HMC368LP4 - Analog Devices

Description: RF Amplifier x2 Active mult SMT, 9 - 16 GHz Fout

Download HMC368LP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

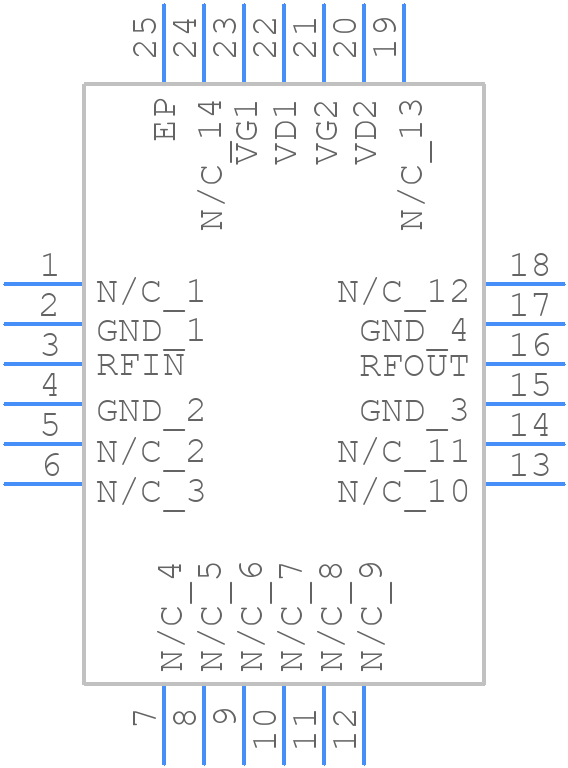

HMC368LP4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC368LP4 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 pin QFN_2020
click to zoom
3D Models
HMC368LP4 - Analog Devices - 3D model - Quad Flat No-Lead - 24 pin QFN_2020
click to zoom

HMC368LP4 Details

  • Manufacturer Part Number:

    HMC368LP4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    4500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • VSWR-Max:

    1.92

HMC368LP4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are decoupled with 100nF capacitors to ground, and the Iset pin is connected to a 10kΩ resistor to Vcc. Also, ensure the input and output pins are properly terminated.
  • The HMC368LP4 can handle up to 1W of power, but it's recommended to derate the power handling to 0.5W to ensure reliable operation.
  • Check for proper PCB layout, decoupling, and termination. Ensure the input and output impedances are matched, and the device is properly biased. Use a spectrum analyzer to identify any unwanted oscillations or spurious signals.
  • Yes, the HMC368LP4 can be used in a push-pull configuration, but it requires careful design and layout to ensure proper operation. Consult the application note AN-1039 for more information.
