HMC368LP4E footprint, schematic symbol and 3D model by Analog Devices

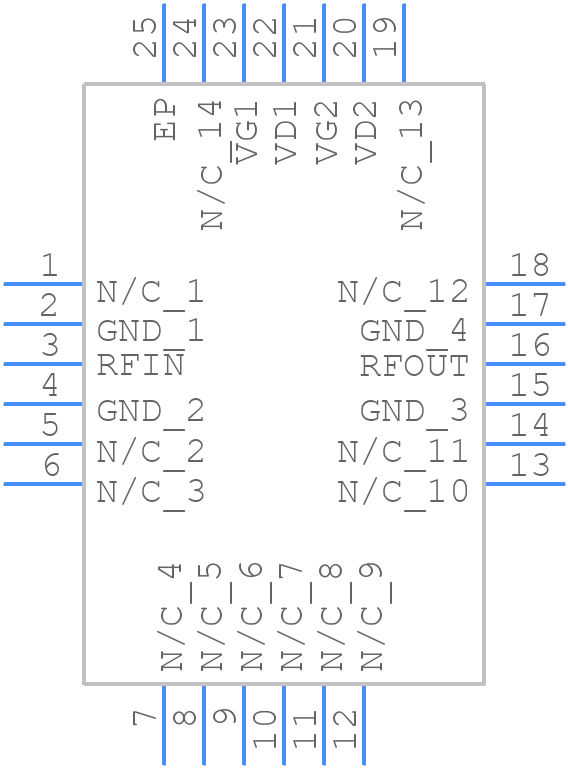

Symbol

click to zoom

PCB Footprints

HMC368LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4X4mm SMT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC368LP4E
Part Number HMC368LP4E
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 24 Lead 4X4mm SMT
Released Date Aug 27, 2026
Last Modified Date Aug 27, 2026 4:23 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC368LP4E Details

Manufacturer Part Number:
HMC368LP4E
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-24
Pin Count:
24
Manufacturer Package Code:
HCP-24-2
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
20 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
24
Operating Frequency-Max:
8000 MHz
Operating Frequency-Min:
4500 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC24,.16SQ,20
Power Supplies:
5 V
RF/Microwave Device Type:
FREQUENCY DOUBLER
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Matte Tin (Sn)
VSWR-Max:
1.92

HMC368LP4E Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
Ensure the Vcc and Vee pins are connected to a stable power supply, and the Vtune pin is biased to the recommended voltage (typically 3.3V or 5V) through a resistor divider network.
The HMC368LP4E can handle up to 1W of power, but it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize thermal issues.
Check the PCB layout for any signs of resonance or oscillation, ensure the power supply is stable and well-regulated, and verify the biasing and tuning of the device are correct. Use a spectrum analyzer or oscilloscope to diagnose and debug the issue.
Yes, the HMC368LP4E can be used in a push-pull configuration, but it's essential to ensure the two devices are properly matched and biased to avoid uneven current sharing and potential oscillations.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HMC368LP4E Overview

Use the download button to access the HMC368LP4E schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC36, or try a keyword search, such as RF/Microwave Frequency Multipliers
