HMC369LP3E - Analog Devices

Description: RF IC Frequency Multiplier X-Band 9.9GHz ~ 12.7GHz Active Frequency Multiplier 16-QFN (3x3)

Download HMC369LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

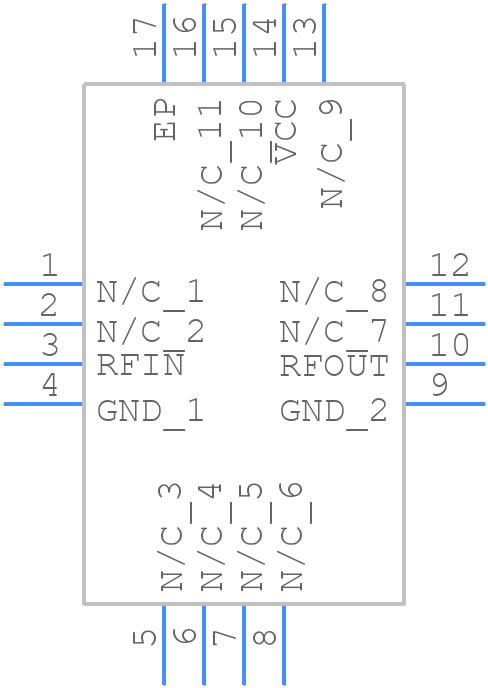

HMC369LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC369LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-QFN_2025-1
click to zoom
3D Models
HMC369LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 16-QFN_2025-1
click to zoom

HMC369LP3E Details

  • Manufacturer Part Number:

    HMC369LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    12700 MHz

  • Operating Frequency-Min:

    9900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC369LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are decoupled with 100nF capacitors, and the Iset pin is connected to a 10kΩ resistor to set the current limit. Also, ensure the input and output pins are properly terminated.
  • The maximum power dissipation of the HMC369LP3E is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, the HMC369LP3E can be used in switching power supply applications. However, ensure proper filtering and decoupling to minimize noise and ripple.
  • Check for proper PCB layout, decoupling, and termination. Ensure the input and output pins are properly matched and terminated. Also, check for any signs of overheating or excessive current draw.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC369LP3E Overview

Use the download button to access the HMC369LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC36, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
