HMC369LP3ETR - Analog Devices

Description: RF Amplifier X2 Active Multiplier, 9.9 - 12.7 GHz Fout

Download HMC369LP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

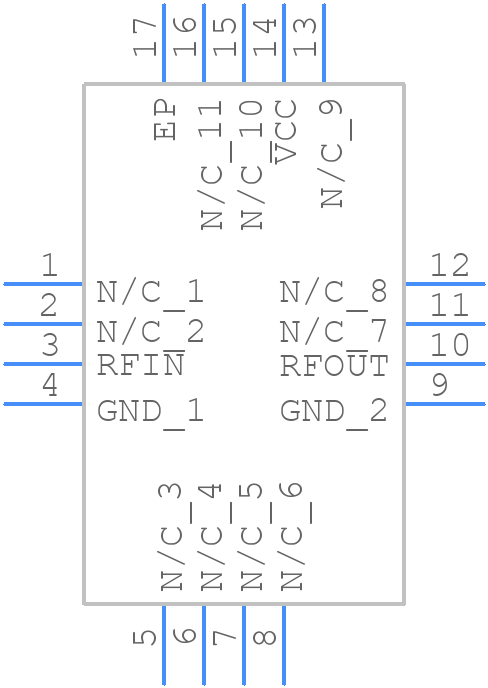

HMC369LP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC369LP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-VFQFN _2024
click to zoom
3D Models
HMC369LP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - 16-VFQFN _2024
click to zoom

HMC369LP3ETR Details

  • Manufacturer Part Number:

    HMC369LP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    12700 MHz

  • Operating Frequency-Min:

    9900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Supply Current-Max:

    61 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC369LP3ETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC369LP3ETR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-0971 for more details.
  • To optimize output power and efficiency, ensure that the input power is sufficient, and the output load is matched to the device's output impedance. Also, optimize the biasing of the device, and use a heat sink to keep the junction temperature below 125°C. Refer to the application note AN-0971 for more details.
  • The HMC369LP3ETR can operate from -40°C to 85°C, but the maximum junction temperature should not exceed 125°C. Operating the device beyond this temperature range may affect its performance and reliability.
  • Common issues with the HMC369LP3ETR include overheating, output power reduction, and oscillations. To troubleshoot, check the input power, output load, and biasing. Ensure that the device is properly soldered and the PCB layout is correct. Refer to the application note AN-0971 for more troubleshooting tips.
  • The HMC369LP3ETR is a sensitive device and requires ESD precautions during handling and assembly. Use an ESD wrist strap or mat, and handle the device by the package, not the pins. Avoid touching the pins or exposing the device to static electricity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC369LP3ETR Overview

Use the download button to access the HMC369LP3ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC36, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
