HMC370LP4ETR footprint, schematic symbol and 3D model by Analog Devices

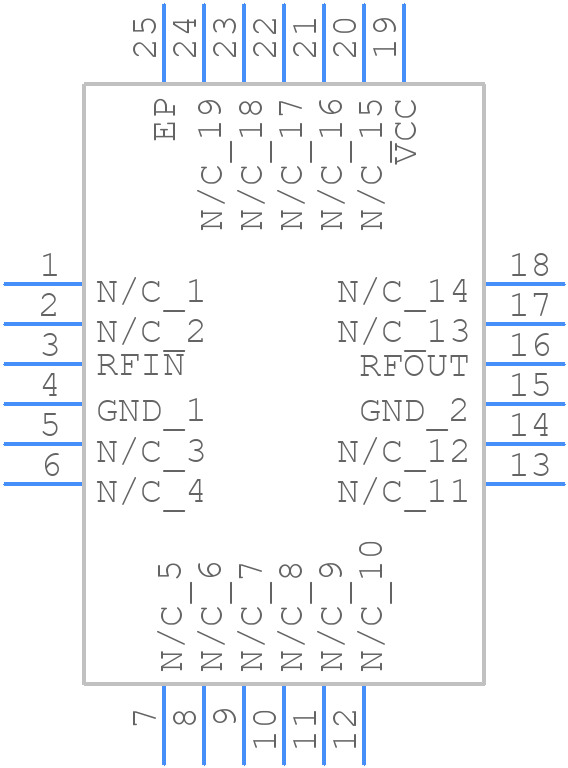

Symbol

click to zoom

PCB Footprints

HMC370LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4X4mm SMT

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC370LP4ETR
Part Number HMC370LP4ETR
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 24 Lead 4X4mm SMT
Released Date Aug 29, 2026
Last Modified Date Aug 29, 2026 8:38 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC370LP4ETR Details

Manufacturer Part Number:
HMC370LP4ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Pin Count:
24
Manufacturer Package Code:
HCP-24-2
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
20 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
24
Operating Frequency-Max:
16400 MHz
Operating Frequency-Min:
14400 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC24,.16SQ,20
Power Supplies:
5 V
RF/Microwave Device Type:
FREQUENCY QUADRUPLER
Supply Current-Max:
73 mA
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Matte Tin (Sn)

HMC370LP4ETR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
The HMC370LP4ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
The HMC370LP4ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
The HMC370LP4ETR has a thermal pad that must be connected to a thermal ground plane on the PCB. Ensure good thermal conductivity between the device and the PCB to prevent overheating.
The HMC370LP4ETR has internal ESD protection, but additional external protection is recommended. Use a TVS diode or a transient voltage suppressor to protect the device from electrostatic discharge.
