HMC373LP3E - Analog Devices

Description: GaAs PHEMT MMIC Low Noise Amplifier w/ Bypass Mode, 700 - 1000 MHz ,0.878 W ,-65 to +150° C

Download HMC373LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

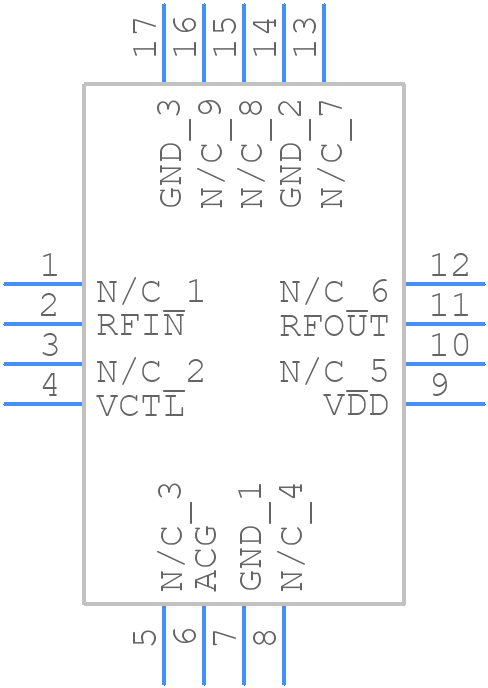

Symbol
HMC373LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC373LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-16-3_2026-1.18
click to zoom

HMC373LP3E Details

  • Manufacturer Part Number:

    HMC373LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10.5 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.78

HMC373LP3E Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC373LP3E involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed in a quiet area of the board, away from high-frequency sources.
  • To ensure proper biasing, the HMC373LP3E requires a single supply voltage between 3.3V and 5V, and a bias current of around 10mA. The device also requires a 50Ω termination on the output for optimal performance. Additionally, the input should be AC-coupled and biased to a common-mode voltage of around 1.5V.
  • The HMC373LP3E is specified to operate up to 6 GHz, but it can be used at higher frequencies with some degradation in performance. However, it's recommended to consult with Analog Devices Inc. or a qualified RF engineer to determine the feasibility of using the device at frequencies above 6 GHz.
  • The HMC373LP3E has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a good thermal conductivity, and a heat sink or thermal pad can be used to dissipate heat. The device should also be operated within the recommended power dissipation limits to prevent overheating.
  • The HMC373LP3E is a sensitive device and requires proper ESD protection to prevent damage. It's recommended to use a static-dissipative workstation, handle the device by the package only, and use ESD-protective packaging and storage materials. Additionally, ESD protection devices such as TVS diodes or ESD arrays can be used on the input and output lines to protect the device from electrostatic discharge.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC373LP3E Overview

Use the download button to access the HMC373LP3E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC37, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
