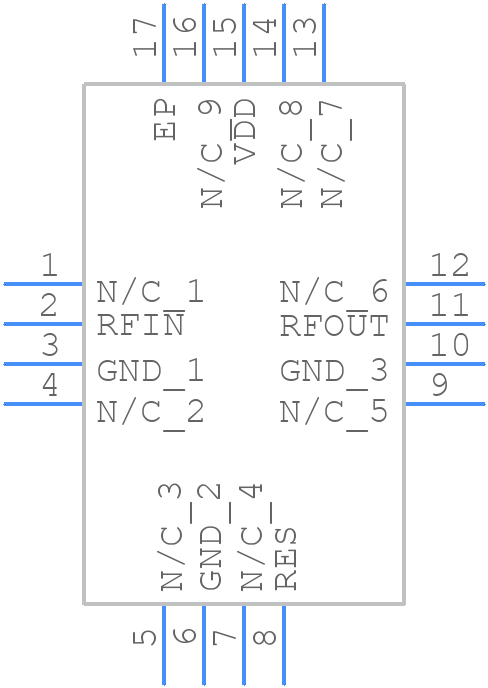

HMC376LP3ETR - Analog Devices

HMC376LP3ETR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the HMC376LP3ETR?
  A good PCB layout for the HMC376LP3ETR involves keeping the RF signal paths as short as possible, using a solid ground plane, and minimizing the use of vias. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the RF signals, a layer for the ground plane, and two layers for the digital signals.
• How do I ensure the HMC376LP3ETR is properly calibrated for accurate measurements?
  The HMC376LP3ETR requires calibration to ensure accurate measurements. This can be done by following the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the device's internal calibration registers accordingly. It's also recommended to perform periodic recalibration to maintain accuracy over time.
• What is the maximum operating temperature range for the HMC376LP3ETR?
  The HMC376LP3ETR is rated for operation over a temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
• How do I interface the HMC376LP3ETR with a microcontroller or FPGA?
  The HMC376LP3ETR can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or a parallel interface. The device's datasheet provides detailed information on the interface protocol and timing requirements. Additionally, Analog Devices provides evaluation boards and software development kits to simplify the interface design process.
• What is the typical current consumption of the HMC376LP3ETR?
  The typical current consumption of the HMC376LP3ETR is around 350 mA, but this can vary depending on the operating frequency, input power level, and other factors. It's recommended to consult the datasheet for detailed information on power consumption and to design the power supply accordingly.
