HMC385LP4ETR - Analog Devices

Description: VCO Oscillators VCO SMT w/Buffer amp, 2.25 - 2.5 GHz

Download HMC385LP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

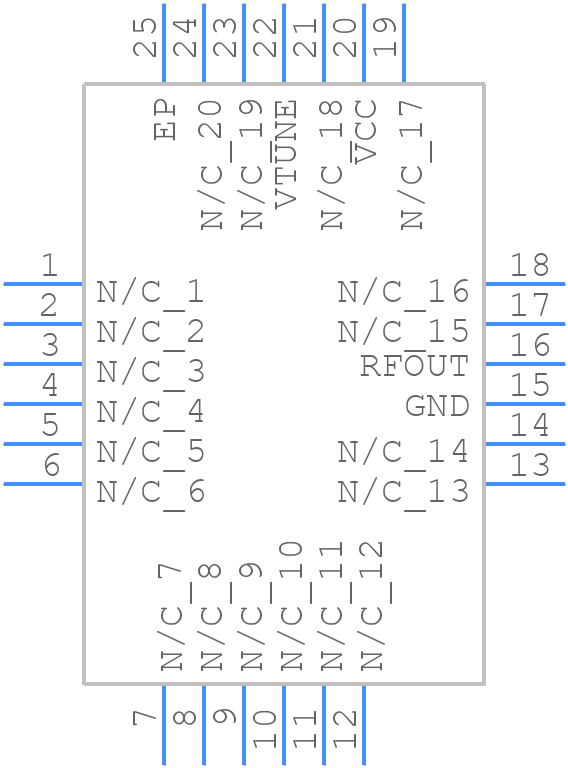

HMC385LP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC385LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC385LP4ETR
click to zoom
3D Models
HMC385LP4ETR - Analog Devices - 3D model - Quad Flat No-Lead - HMC385LP4ETR
click to zoom

HMC385LP4ETR Details

  • Manufacturer Part Number:

    HMC385LP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    10 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    -2 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    2250 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    4.5 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Phase Noise:

    -115 dBc/Hz

  • Physical Dimension:

    4.1mm x 4.1mm x 1.0mm

  • Supply Voltage-Max:

    3.25 V

  • Supply Voltage-Min:

    2.75 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC385LP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC385LP4ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC385LP4ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC385LP4ETR has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and that the clock and data signals are synchronized.
  • The typical current consumption of the HMC385LP4ETR is 350mA, but this can vary depending on the operating frequency and the specific application.
