HMC391LP4E - Analog Devices

Description: Analog Devices Hittite HMC391LP4E, RF Amplifier Low Noise 4.45 GHz, 24-Pin QFN

Download HMC391LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

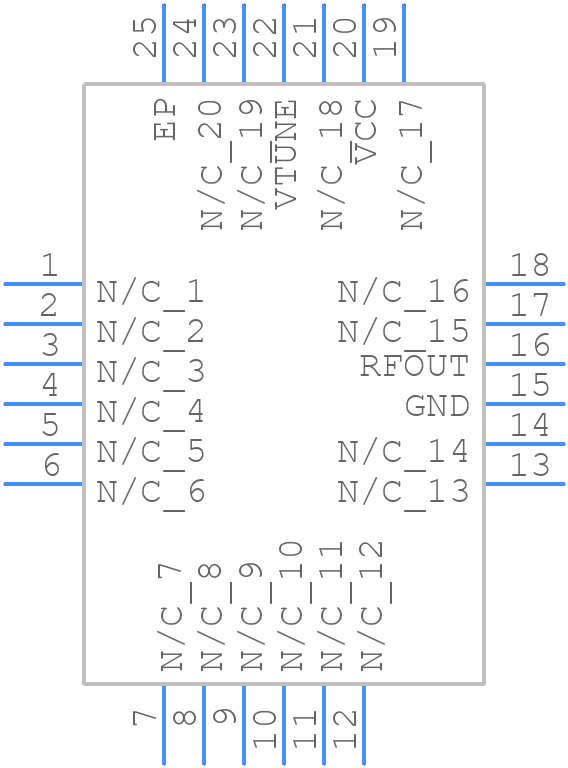

HMC391LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC391LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H941A XXXX
click to zoom

HMC391LP4E Details

  • Manufacturer Part Number:

    HMC391LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    4450 MHz

  • Operating Frequency-Min:

    3900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    NARROW BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    2

HMC391LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC391LP4E requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors to minimize noise and ripple.
  • The HMC391LP4E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout and component selection.
  • Use a heat sink or thermal pad to keep the junction temperature below 125°C. Ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • The recommended input and output impedance is 50 ohms. Ensure the input and output traces are impedance-matched to minimize reflections and signal degradation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC391LP4E Overview

Use the download button to access the HMC391LP4E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC39, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
