HMC394LP4 - Analog Devices

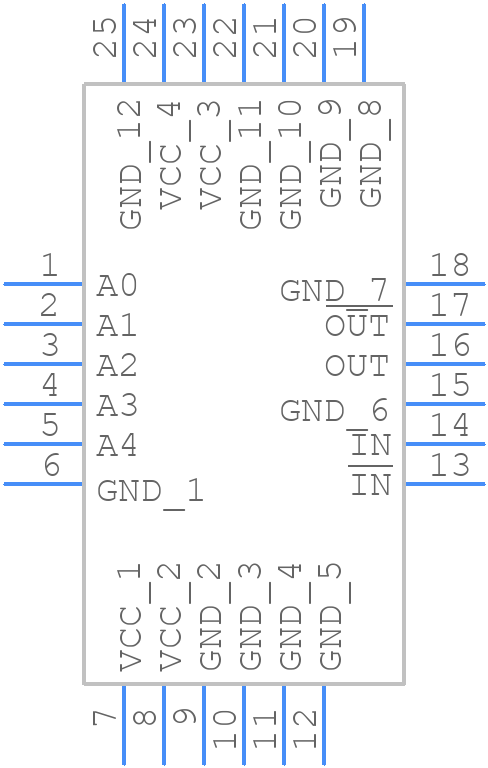

HMC394LP4 Details

• Manufacturer Part Number:

  HMC394LP4

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• Package Description:

  SMT-24

• Pin Count:

  24

• Manufacturer Package Code:

  HCP-24-2

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Family:

  394

• JESD-30 Code:

  S-XQCC-N24

• JESD-609 Code:

  e0

• Length:

  4 mm

• Logic IC Type:

  PRESCALER

• Max Frequency@Nom-Sup:

  2200000000 Hz

• Moisture Sensitivity Level:

  1

• Number of Data/Clock Inputs:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC24,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  GAAS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  4 mm

• fmax-Min:

  2200 MHz
