HMC400MS8E - Analog Devices

Description: RF Mixer hi IP3 mix SMT, 1.7 - 2.2 GHz

Download HMC400MS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

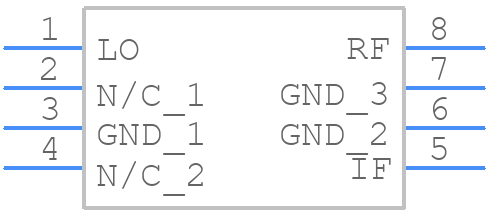

HMC400MS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC400MS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H400-1
click to zoom
3D Models
HMC400MS8E - Analog Devices - 3D model - Small Outline Packages - H400-1
click to zoom

HMC400MS8E Details

  • Manufacturer Part Number:

    HMC400MS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    11 dB

  • Input Power-Max (CW):

    27 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    1700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC400MS8E Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC400MS8E can be found in the 'PCB Layout and Thermal Management' section of the device's evaluation board documentation. It is essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
  • To optimize the power supply for the HMC400MS8E, it is recommended to use a low-noise, high-PSRR power supply with a minimum of 3.3V and a maximum of 5.5V. Additionally, it is essential to decouple the power supply lines with high-quality capacitors and to use a pi-filter or a ferrite bead to reduce noise and EMI.
  • The HMC400MS8E is rated for operation from -40°C to +85°C. However, it is essential to note that the device's performance may degrade at higher temperatures, and it is recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance.
  • To troubleshoot common issues with the HMC400MS8E, it is recommended to follow a systematic approach, starting with a review of the device's datasheet and application notes. Check the device's power supply, PCB layout, and component selection to ensure they meet the recommended specifications. Use simulation tools and/or a spectrum analyzer to identify and debug any issues.
  • The HMC400MS8E is a sensitive device and requires proper ESD protection and handling procedures to prevent damage. It is recommended to handle the device in an ESD-controlled environment, use ESD-protective packaging and materials, and follow proper grounding and handling procedures to prevent static discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC400MS8E Overview

Use the download button to access the HMC400MS8E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC40, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
