HMC406MS8GETR - Analog Devices

Description: RF Amp Single Power Amp 6GHz 5.5V 8-Pin MSOP EP T/R

Download HMC406MS8GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

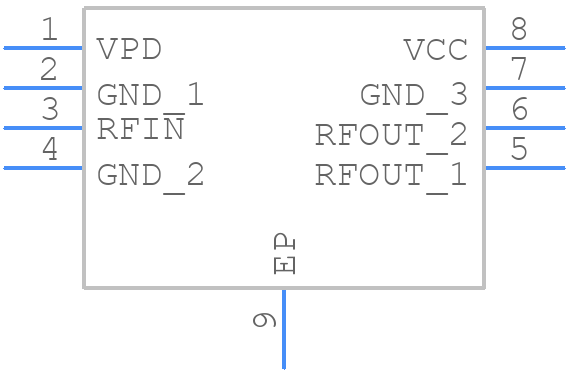

HMC406MS8GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC406MS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC218BMS8GE
click to zoom
3D Models
HMC406MS8GETR - Analog Devices - 3D model - Small Outline Packages - HMC218BMS8GE
click to zoom

HMC406MS8GETR Details

  • Manufacturer Part Number:

    HMC406MS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC406MS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Use a load-pull analysis or a network analyzer to optimize the output matching network for maximum power transfer. The optimal matching network values may vary depending on the specific application and frequency range.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is 50 ohms or lower. Impedance mismatch can affect the amplifier's performance and stability.
  • Ensure proper PCB layout, use a stable voltage supply, and add decoupling capacitors to prevent oscillations. Also, use a series resistor and a shunt capacitor to stabilize the amplifier.
  • The maximum safe operating temperature for the HMC406MS8GETR is 125°C. Operating the device above this temperature can reduce its reliability and lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC406MS8GETR Overview

Use the download button to access the HMC406MS8GETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC40, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to HMC406MS8GETR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

HMC406MS8GETR Alternates

Showing results

Image Part Number Model
Part Image HMC406MS8GE Hittite Microwave Corp

Wide Band Medium Power Amplifier, 5000MHz Min, 6000MHz Max
Part Image HMC406MS8G Hittite Microwave Corp

Wide Band Medium Power Amplifier, 5000MHz Min, 6000MHz Max, 1 Func, GAAS
Part Image HMC406MS8G Analog Devices Inc

Wide Band Medium Power Amplifier, 5000MHz Min, 6000MHz Max, 1 Func, GAAS
Part Image HMC406MS8GTR Analog Devices Inc

Wide Band Medium Power Amplifier, 1 Func, GAAS
