HMC407MS8G - Analog Devices

Description: RF Amplifier InGaP HBT pow amp SMT, 5 - 7 GHz

Download HMC407MS8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

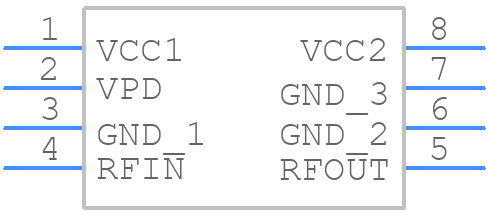

Symbol
HMC407MS8G - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC407MS8G - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC407MS8G
click to zoom
3D Models
HMC407MS8G - Analog Devices - 3D model - Small Outline Packages - HMC407MS8G
click to zoom

HMC407MS8G Details

  • Manufacturer Part Number:

    HMC407MS8G

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, SMT, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    7000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC407MS8G Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC407MS8G requires a single 5V supply. Ensure the voltage supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The device also requires a bias current of 10mA to 20mA.
  • The HMC407MS8G can operate up to 4GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • To minimize the noise figure, ensure the device is properly biased, use a low-noise voltage regulator, and keep the signal traces short and shielded. Additionally, use a high-quality PCB material with low dielectric loss.
  • No, the HMC407MS8G is not designed for switching applications. It is a linear amplifier and should only be used in linear applications.
