HMC407MS8GE - Analog Devices

Description: Analog Devices Hittite HMC407MS8GE, RF Amplifier Power, 15 dB 6 GHz, 8-Pin MSOP

Download HMC407MS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

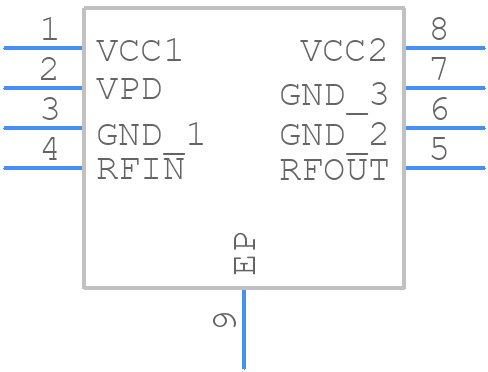

HMC407MS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC407MS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8-1
click to zoom
3D Models
HMC407MS8GE - Analog Devices - 3D model - Small Outline Packages - MSOP-8-1
click to zoom

HMC407MS8GE Details

  • Manufacturer Part Number:

    HMC407MS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    7000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

HMC407MS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC407MS8GE requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors. Bias the chip with a 50Ω resistor to VCC and a 50Ω resistor to GND.
  • The HMC407MS8GE can operate up to 4 GHz, but the maximum frequency depends on the specific application and PCB layout. Consult the datasheet and application notes for more information.
  • Ensure good thermal conductivity by using a heat sink or thermal pad on the package. Keep the device away from heat sources and ensure good airflow. Monitor the junction temperature and reduce power consumption if necessary.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins to protect against electrostatic discharge. Follow the recommended ESD protection circuit in the datasheet.
