HMC407MS8GETR - Analog Devices

Description: RF Amplifier InGaP HBT pow amp SMT, 5 - 7 GHz

Download HMC407MS8GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

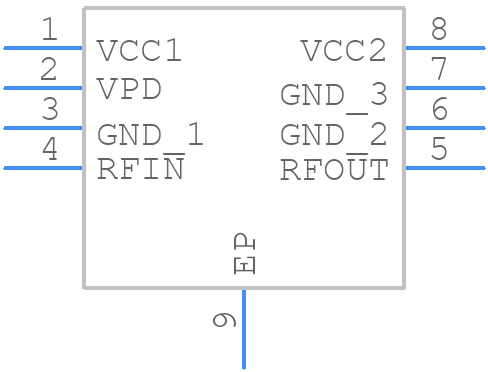

HMC407MS8GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC407MS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSL1_2021
click to zoom
3D Models
HMC407MS8GETR - Analog Devices - 3D model - Small Outline Packages - MSL1_2021
click to zoom

HMC407MS8GETR Details

  • Manufacturer Part Number:

    HMC407MS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    7000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC407MS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC407MS8GETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors to minimize noise and ripple.
  • The HMC407MS8GETR can operate up to 4 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC407MS8GETR has a parallel interface. Use a microcontroller or FPGA with a parallel interface to communicate with the HMC407MS8GETR. Ensure the interface signals are properly terminated and matched to the PCB impedance.
  • The typical current consumption of the HMC407MS8GETR is 350mA at 5V, but this can vary depending on the specific application and operating frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC407MS8GETR Overview

Use the download button to access the HMC407MS8GETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC40, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
