HMC407MS8GTR - Analog Devices

Description: RF Amp Single Power Amp 7GHz 5.5V 8-Pin MSOP EP T/R

Download HMC407MS8GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

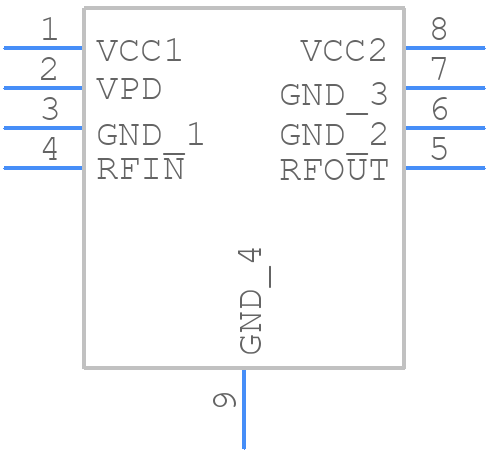

HMC407MS8GTR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC407MS8GTR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RH-8-1)-
click to zoom
3D Models
HMC407MS8GTR - Analog Devices - 3D model - Small Outline Packages - (RH-8-1)-
click to zoom

HMC407MS8GTR Details

  • Manufacturer Part Number:

    HMC407MS8GTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, SMT, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    10 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e0

  • Operating Frequency-Max:

    7000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC407MS8GTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC407MS8GTR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors. Bias the device with a 50 ohm termination resistor.
  • The HMC407MS8GTR can operate up to 4 GHz, but the maximum frequency depends on the specific application and the quality of the PCB layout. Consult the datasheet for more information.
  • Use a shielded enclosure, keep the device away from other noise sources, and use a common-mode choke or ferrite bead to filter the power supply. Ensure the PCB layout is optimized for minimal radiation.
  • The HMC407MS8GTR has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Consult the datasheet for thermal resistance values.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC407MS8GTR Overview

Use the download button to access the HMC407MS8GTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC40, or try a keyword search, such as RF/Microwave Amplifiers
