HMC409LP4E - Analog Devices

Description: RF Amplifier 1 Watt pow amp SMT, 3.3 - 3.8 GHz

Download HMC409LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

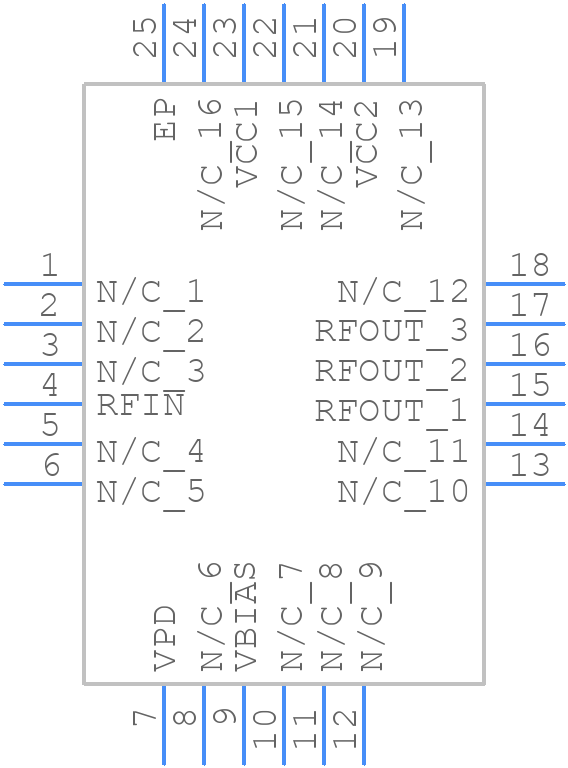

HMC409LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC409LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H409 XXXX
click to zoom
3D Models
HMC409LP4E - Analog Devices - 3D model - Quad Flat No-Lead - H409 XXXX
click to zoom

HMC409LP4E Details

  • Manufacturer Part Number:

    HMC409LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    28 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    3800 MHz

  • Operating Frequency-Min:

    3300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    NARROW BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC409LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC409LP4E requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors to minimize noise and ripple.
  • The HMC409LP4E can operate up to 4 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout and component selection.
  • Use a low-noise voltage regulator, keep the device away from heat sources, and ensure good airflow around the device. You can also use thermal pads or heat sinks to dissipate heat.
  • The recommended input impedance is 50 ohms, and the output impedance is typically 50 ohms as well. However, the optimal impedance may vary depending on the specific application and frequency of operation.
