HMC409LP4ETR footprint, schematic symbol and 3D model by Analog Devices

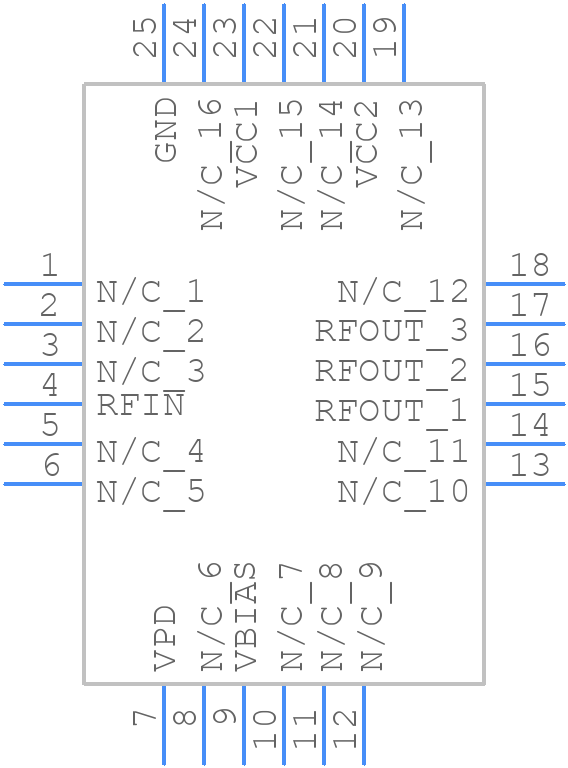

Symbol

click to zoom

PCB Footprints

HMC409LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC409LP4ETR
Part Number HMC409LP4ETR
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP_2026-1.4
Released Date Aug 28, 2026
Last Modified Date Aug 28, 2026 9:33 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC409LP4ETR Details

Manufacturer Part Number:
HMC409LP4ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 24 PIN
Pin Count:
24
Manufacturer Package Code:
CP-24-16
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
28 dB
Input Power-Max (CW):
10 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
24
Operating Frequency-Max:
3800 MHz
Operating Frequency-Min:
3300 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC24,.16SQ,20
Power Supplies:
5 V
RF/Microwave Device Type:
NARROW BAND MEDIUM POWER
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
Matte Tin (Sn)
VSWR-Max:
1.92

HMC409LP4ETR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
The HMC409LP4ETR requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA to 20mA.
The HMC409LP4ETR can operate up to 4GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 2GHz for optimal performance.
Use a shielded enclosure and keep the device away from noise sources such as motors, relays, and switching power supplies. Use a common mode choke or a ferrite bead to filter the power supply. Ensure the PCB layout is well-designed and the signal traces are short and shielded.
The HMC409LP4ETR has a maximum junction temperature of 150°C. Ensure good airflow around the device and use a heat sink if necessary. Avoid overheating the device, as it can reduce its lifespan and affect its performance.
