HMC410AMS8GE - Analog Devices

Description: Analog Devices Hittite HMC410AMS8GE, Up-Down Converter & Mixer Circuit 15GHz Gain=14 dB 8-Pin MSOP

Download HMC410AMS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

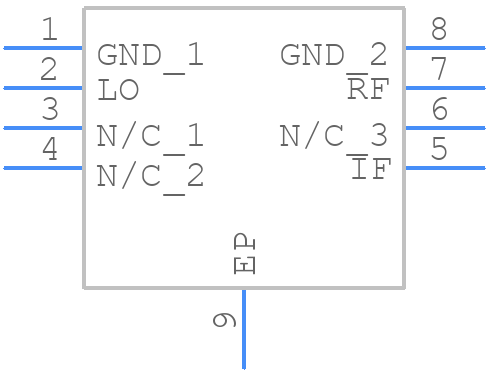

HMC410AMS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC410AMS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H410A
click to zoom
3D Models
HMC410AMS8GE - Analog Devices - 3D model - Small Outline Packages - H410A
click to zoom

HMC410AMS8GE Details

  • Manufacturer Part Number:

    HMC410AMS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    11 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    15000 MHz

  • Operating Frequency-Min:

    9000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Terminal Finish:

    Matte Tin (Sn)

HMC410AMS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Use a low noise power supply, decouple the power pins, and use a high-quality RF choke. Also, ensure the device is operated within the recommended operating conditions.
  • A conjugate match is recommended for optimal performance. Use a pi-network or a T-network with a 50-ohm impedance for input and output matching.
  • Check for proper PCB layout, decoupling, and thermal management. Ensure the device is operated within the recommended operating conditions and that the input and output matching networks are optimized.
  • The recommended operating temperature range is -40°C to 85°C. However, the device can operate up to 125°C with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC410AMS8GE Overview

Use the download button to access the HMC410AMS8GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC41, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
