HMC410AMS8GETR - Analog Devices

Description: RF Mixer hi IP3 DBL-BAL mix SMT, 9 - 15 GHz

Download HMC410AMS8GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

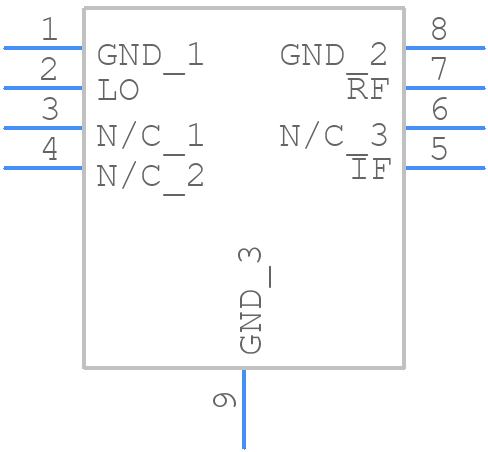

HMC410AMS8GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC410AMS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 412B
click to zoom
3D Models
HMC410AMS8GETR - Analog Devices - 3D model - Small Outline Packages - 412B
click to zoom

HMC410AMS8GETR Details

  • Manufacturer Part Number:

    HMC410AMS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Technology:

    GAAS

HMC410AMS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation by using a heat sink and thermal interface material.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a load-pull analysis to determine the optimal impedance matching.
  • Follow the recommended biasing and tuning procedures outlined in the datasheet. Use a gradual and controlled approach to avoid overheating or damaging the device.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI. Ensure that the device is properly decoupled and that the PCB layout is optimized for EMC.
  • Perform environmental and reliability tests such as temperature cycling, vibration, and humidity testing. Also, perform electrical tests such as DC and RF characterization, and consider performing HALT (Highly Accelerated Life Testing) and HASS (Highly Accelerated Stress Screening) testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC410AMS8GETR Overview

Use the download button to access the HMC410AMS8GETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC41, or try a keyword search, such as RF/Microwave Mixers
